Networking and Security Project

Important

This project is part of the DevOpsTheHardWay course. Please onboard the course before starting.

Before finishing this project, it's advisable to complete any previous projects if you haven't already done so.

Networking and Security Project

Project goals

This project practices some important concepts in networking and security for a DevOps engineer.

You'll set up a standard public-and-private network structure in AWS. Additionally, you'll automate SSH connection and key rotation. Finally, you'll create a simplified version of the TLS handshake process to explore how symmetric and asymmetric encryption work.

Preliminaries

Fork this repo (read here how).
Clone your forked repository into a new PyCharm project (read here how).
This project involves working with networks and virtual machines in AWS. You must have access to an AWS account to complete the project.
Note that you are responsible for the costs of any resources you create. You'll mainly pay for 2 running virtual machines with 8GB disk each. If you work properly, the cost estimation is 2.96 USD, assuming your instance are running for 8 hours a day for a whole month (the project can be completed in much less than a month. You can, and must, stop you instances at the end of usage to avoid additional charges).

Let's get started...

Part I: Build a network in AWS cloud

AWS VPC (Virtual Private Cloud) is a service that allows users to create a logically isolated virtual network within the AWS cloud infrastructure. Users can define their own IP address range, subnets, and network gateways, and configure security rules to control access to their resources.

Important

Creating the VPC itself does not incur any cost. You'll be charged only when launching a virtual machines within your VPC.

Create a VPC

Open the Amazon VPC console at https://console.aws.amazon.com/vpc/.
In the navigation pane, choose Your VPCs, Create VPC.
Under Resources to create, choose VPC only.
Specify the following VPC details.
- Name tag: Provide a name for your VPC, e.g. <my-alias>-vpc (change <my-alias> to your alias).
- IPv4 CIDR block: Specify an IPv4 CIDR block of 10.0.0.0/16 for your VPC. The CIDR block size must have a size between /16 and /28. More information can be found in RFC 1918.
- Tenancy: Choose the default tenancy option for this VPC.
Choose Create VPC.

Great! Enter the main page of your VPC and explore the details. Especially, note the DHCP option set, the main route table, and the network ACL that AWS was allocated for your VPC.

DHCP option set

No any good reason to touch it, AWS done all for you!

Network ACL

A network access control list (ACL) is an optional layer of security for your VPC that acts as a firewall for controlling traffic in and out of one or more subnets.

Main route table

The main route table contains a single rule that allows traffic to flow freely within the VPC, but does not allow traffic to flow in or out of the VPC. The main route table is applied by default to all subnets in the VPC that are not explicitly associated with a different route table. Thus, by default, machines that will be part of the VPC would not be able to access the public internet, unless otherwise defined.

Create the public subnet in your VPC

To add a new subnet to your VPC, you must specify an IPv4 CIDR block for the subnet from the range of your VPC. You can specify the Availability Zone in which you want the subnet to reside.

In the navigation pane, choose Subnets.
Choose Create subnet.
For VPC ID: Choose the VPC for the subnet.
For Subnet name, enter a name for your subnet: <my-alias>-public-subnet.
For Availability Zone, you can choose a Zone for your subnet, or leave the default No Preference to let AWS choose one for you.
For IPv4 CIDR block, enter an IPv4 CIDR block for your subnet: 10.0.0.0/24.
Choose Create subnet.

Create a custom route table

To allow traffic to flow out of the VPC (to the public internet), a new custom route table needs to be created and associated with the above created subnet.

We will turn now to create the custom route table that would allow traffic flow to the public internet.

In the navigation pane, choose Route Tables.
Choose Create route table.
For Name, enter a name for your route table. E.g. <my-alias>-public-rt.
For VPC, choose your VPC.
Choose Create.

Create and attach an Internet Gateway

In a real, physical network, the way computers are able to connect to the internet is by a device called a router. But since we are building virtual network, the way of AWS to provide us a "router", is by a resource called Internet Gateway. We can say that Internet Gateway serves as a virtual router to connect your VPC to the internet.

You'll now create an internet gateway and attach it to your VPC.

In the navigation pane, choose Internet Gateways, and then choose Create internet gateway.
Name your internet gateway, e.g. <my-alias>-igw.
Choose Create internet gateway.
Select the internet gateway that you just created, and then choose Actions, Attach to VPC.
Select your VPC from the list, and then choose Attach internet gateway.

Add the Internet Gateway as a target in a custom route table

When you create a subnet, AWS automatically associate it with the main route table for the VPC. By default, the main route table doesn't contain a route to an internet gateway. The following procedure uses your custom route table and creates a route that sends traffic destined outside the VPC to the internet gateway, and then associates it with your subnet.

Select the custom route table that you just created. The details pane displays tabs for working with its routes, associations, and route propagation.
On the Routes tab, choose Edit routes, Add route, and add the following routes as necessary. Choose Save changes when you're done.
- For IPv4 traffic, specify 0.0.0.0/0 in the Destination box, and select the internet gateway ID in the Target list.
On the Subnet associations tab, choose Edit subnet associations, select the check box for the subnet, and then choose Save associations.

Auto assign public IP for every machine that will be connected to the public subnet

Each subnet has an attribute that determines whether machines launched into that subnet are assigned a public IP address by default. Your created subnet has this attribute set to false. We would like to enable this property, so we would be able to connect to machines in this subnet from our local machine.

In the navigation pane, choose Subnets.
Select the public subnet that you just created, and then choose Actions, Edit subnet settings.
For Auto-assign IP settings, check the Enable auto-assign public IPv4 address box.
Choose Save.

Launch a virtual machine (EC2 instance) in the public subnet

Amazon EC2 (Elastic Compute Cloud) is a web service that provides resizable compute capacity in the cloud. It allows users to create and manage virtual machines, commonly referred to as "instances", which can be launched in a matter of minutes and configured with custom hardware, network settings, and operating systems.

Open the Amazon EC2 console at https://console.aws.amazon.com/ec2/.
From the EC2 console dashboard, in the Launch instance box, choose Launch instance, and then choose Launch instance from the options that appear.
Under Name and tags, for Name, enter a descriptive name for your instance.
Under Application and OS Images (Amazon Machine Image), do the following:
1. Choose Quick Start, and then choose Ubuntu. This is the operating system (OS) for your instance.
Under Instance type, from the Instance type list, you can select the hardware configuration for your instance. Choose the t2.nano instance type (the cheapest one). In Regions where t2.nano is unavailable, you can use a t3.nano instance.
Under Key pair (login), choose create new key pair the key pair that you created when getting set up.
1. For Name, enter a descriptive name for the key pair. Amazon EC2 associates the public key with the name that you specify as the key name.
2. For Key pair type, choose either RSA.
3. For Private key file format, choose the format in which to save the private key. Since we will use ssh to connect to the machine, choose pem.
4. Choose Create key pair.
Important
This step should be done once! once you've created a key-pair, use it for every EC2 instance you are launching.
1. The private key file is automatically downloaded by your browser. The base file name is the name you specified as the name of your key pair, and the file name extension is determined by the file format you chose. Save the private key file in a safe place.

  Important
  This is the only chance for you to save the private key file.
2. Your private key file has to have permission of 400, chmod it if needed.
Next to Network settings, choose Edit.
1. From VPC choose your VPC.
2. From Subnet choose your public subnet.
Keep the default selections for the other configuration settings for your instance.
Review a summary of your instance configuration in the Summary panel, and when you're ready, choose Launch instance.
A confirmation page lets you know that your instance is launching. Choose View all instances to close the confirmation page and return to the console.
On the Instances screen, you can view the status of the launch. It takes a short time for an instance to launch. When you launch an instance, its initial state is pending. After the instance starts, its state changes to running and it receives a public DNS name.
It can take a few minutes for the instance to be ready for you to connect to it. Check that your instance has passed its status checks; you can view this information in the Status check column.

Note

When stopping the instance, please note that the public IP address may change, while the private IP address remains unchanged

Connect to your instance

Open the terminal in your local machine, and connect to your instance by:

ssh -i "</path/key-pair-name.pem>" ubuntu@<instance-public-dns-name-or-ip>

Make sure your instance has public access to the internet.
Use route -n and the information under /etc/resolv.conf to determine the IP addresses of your local DNS server, and the default gateway. Copy the IPs into SOLUTION file in the appropriate place.
Search in /var/log/syslog logs that indicate the communication of the instance with the DHCP server (grep may be useful...). Specifically, find and indication for the 4 phases of DHCP IP allocation (DORA). Copy the relevant logs into SOLUTION file in the appropriate place.

Extending your VPC

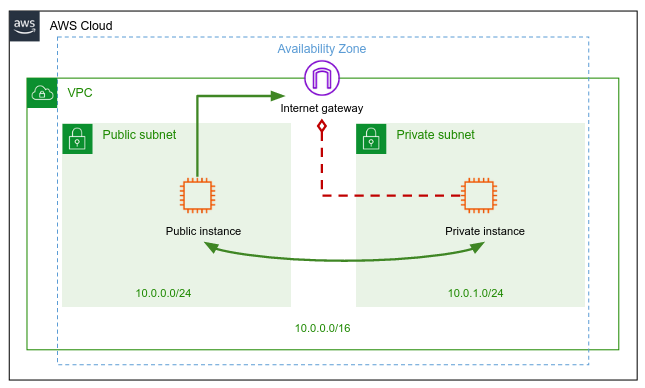

Extend your VPC according to the below architecture:

Note: No need to create NAT gateway in any way you choose to build the above VPC architecture.

Create an EC2 instance in your private subnet. Can you connect it from your local machine? no... it has no public IP, and it is not accessible from the internet at all.

Think how you can use the public instance to connect to the private instance. Once you’re in the private instance, try to access the internet and make sure you don’t have access.

Part II: SSH bastion host

SSH jump host (also known as SSH bastion host or SSH gateway) is a special type of server that allows users to access other servers in a private network through it. It acts as an intermediary host between the client and the target server. By using a jump host, users can securely connect to remote servers that are not directly accessible from the internet or from their local machine. The jump host acts as a secure entry point to the private network, enforcing authentication and access controls, and reducing the attack surface of the servers behind it.

Implement a bash script in bastion_connect.sh that connects to the private instance using the public instance.

Your script should expect an environment variable called KEY_PATH, which is a path to the .pem ssh key file. If the variable doesn't exist, it prints an error message and exits with code 5.

Here is how your script will be tested:

Case 1 - Connect to the private instance from your local machine

myuser@hostname:~$ export KEY_PATH=~/key.pem
myuser@hostname:~$ ./bastion_connect.sh <public-instance-ip> <private-instance-ip>
ubuntu@private-instance-ip:~$

Case 2 - Connect to the public instance

myuser@hostname:~$ export KEY_PATH=~/key.pem
myuser@hostname:~$ ./bastion_connect.sh <public-instance-ip>
ubuntu@public-instance-ip:~$

Case 3 - Run a command in the private machine

myuser@hostname:~$ export KEY_PATH=~/key.pem
myuser@hostname:~$ ./bastion_connect.sh <public-instance-ip> <private-instance-ip> ls
some-file-in-private-ec2.txt

Case 4 - Bad usage

myuser@hostname:~$ ./bastion_connect.sh <ip>
KEY_PATH env var is expected
myuser@hostname:~$ echo $?
5
myuser@hostname:~$ export KEY_PATH=~/key.pem
myuser@hostname:~$ ./bastion_connect.sh
Please provide bastion IP address
myuser@hostname:~$ echo $?
5

Part III: SSH keys rotation

Key rotation is a security practice that involves regularly replacing cryptographic keys used for encryption, authentication, or authorization to mitigate the risk of compromise. It helps to ensure that compromised keys are not used to gain unauthorized access and that any data that has been encrypted with the old keys is no longer accessible. Key rotation is typically used in many security-related systems such as SSH, SSL/TLS, and various forms of encryption, and is a key component of maintaining a secure environment.

In your public EC2 instance, create a bash script under ~/ssh_keys_rotation.sh that automatically rotates the keys of the private instance.

The script would be invoked by:

ubuntu@<public-ip-host>:~$ ./ssh_keys_rotation.sh <private-instance-ip>

At the end of the execution, connection to the private instance would be allowed using a new key-pair (generated as part of the running of ssh_keys_rotation.sh).

ubuntu@<public-ip-host>:~$ ssh -i <path_to_new_key> ubuntu@<private-ip-host>
ubuntu@<private-ip-host>:~$

Note that you should not be able to connect using the old SSH key:

ubuntu@<public-ip-host>:~$ ssh -i <path_to_old_key> ubuntu@<private-ip-host>
ubuntu@<private-ip-host>: Permission denied (publickey).

Note: Make sure the rotation process doesn't break the bastion_connect.sh script from the previous question. The script should work fluently after rotation.

In any case that you break the private instance, feel free to delete your EC2 instance and create a new one instead.

Part IV: TLS Handshake

As you may know, the communication in HTTP protocol is insecure, and since Eve is listening on the channel between you (Alice) and the web server (Bob), you are required to create a secure channel. This is what HTTPS does, using the TLS protocol. The process of establishing a secure TLS connection involves several steps, known as TLS Handshake.

The TLS protocol uses a combination of asymmetric and symmetric encryption. Here is a simplified TLS handshake process:

Step 1 - Client Hello (Client -> Server).

First, the client sends a Client Hello message to the server. The message includes:

The client's TLS version.
A list of supported ciphers.

Step 2 - Server Hello (Server -> Client)

The server replies with a Server Hello. A Server Hello includes the following information:

Server Version - a confirmation for the version specified in the client hello.
Session ID - used to identify the current communication session between the server and the client.
Server digital certificate - the certificate contains some details about the server, as well as a public key with which the client can encrypt messages to the server. The certificate itself is signed by Certificate Authority (CA).

Step 3 - Server Certificate Verification

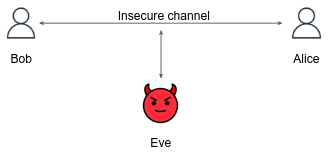

Alice needs to verify that she's taking with Bob, the real Bob. Why should she suspect? Since Eve is controlling every message that Bob sends to Alice, Eve can impersonate Bob, talk with Alice on his behalf, without Alice to knowing that.

Here the CA comes into the picture. CA is an entity (e.g. Amazon Web Services, Microsoft etc...) trusted by both sides (client and server) that issues and signs digital certificates, so the ownership of a public key can be easily verified.

In this step the client verifies the server's digital certificate. Which means, Alice verifies Bob's certificate.

Step 4 - Client-Server master-key exchange

Now, after Bob's certificate was verified successfully, the client and the server should agree on a symmetric key (called master key) with which they will communicate during the session. The client generates a 32-bytes random master-key, encrypts it using the server's certificate and sends the encrypted message in the channel.

In addition to the encrypted master-key, the client sends a sample message to verify that the symmetric key encryption works.

Note

The real TLS protocol doesn't use the master key for direct communication. Instead, other different session keys are generated and used to communicate symmetrically. Both the client and the server's generate the keys each in his own machine.

Step 5 - Server verification message

The server decrypts the encrypted master-key.

From now on, every message between both sides will be symmetrically encrypted by the master-key. The server encrypts the sample message and sends it back to the client.

Step 6 - Client verification message

The client verifies that the sample message was encrypted successfully.

Implement the TLS handshake

Use the scp command to copy the directory tls_webserver into your home directory of your public EC2. This Python code implements an HTTP web server that represents Bob's side. You will communicate with this server (as Alice), and implement the handshake process detailed above, over an insecure HTTP channel.

Before you run the server on your public EC2 instance, you should install some Python packages:

sudo apt update && sudo apt install python3-pip
pip install aiohttp==3.9.3

The server can be run by:

python3 app.py

Note that the server is listening on port 8080, but by default, the only allowed inbound traffic to an EC2 instance is port 22 (why?). Take a look here to know how to open port 8080 on your public EC2 instance.

After the server is running and inbound traffic on port 8080 is allowed, you can test the server by executing the below command from your local machine:

myuser@hostname:~$ curl <public-ec2-instance-ip>:8080/status
Hi! I'm available, let's start the TLS handshake

Your goal is to perform the above 6 steps using a bash script, and establish a secure channel with the server.

Below are some helpful instructions you may utilize in each step. Eventually, your code should be written in tlsHandshake.sh and executed by:

bash tlsHandshake.sh <server-ip>

While <server-ip> is the server public IP address.

Make your script robust and clean, use variables, in every step check if the commands have succeeded and print informational messages accordingly.

Use curl to send the following Client Hello HTTP request to the server:

POST /clienthello
{
   "version": "1.3",
   "ciphersSuites": [
      "TLS_AES_128_GCM_SHA256",
      "TLS_CHACHA20_POLY1305_SHA256"
   ],
   "message": "Client Hello"
}

POST is the request method, /clienthello is the endpoint, and the json is the body.

Server Hello response will be in the form:

{
   "version": "1.3",
   "cipherSuite": "TLS_AES_128_GCM_SHA256",
   "sessionID": "......",
   "serverCert": "......"
}

The response is in JSON format. You may want to keep the sessionID in a variable, and the server cert in a file, for later usage. Use the jq command to parse and save specific keys from the JSON response.

Assuming the server certificate was stored in cert.pem file, you can verify the certificate by:

openssl verify -CAfile cert-ca-aws.pem cert.pem

While cert-ca-aws.pem is the CA certificate file (in our case of Amazon Web Services). You can safely download it from: https://alonitac.github.io/DevOpsTheHardWay/networking_project/cert-ca-aws.pem (wget...).

Upon a valid certificate validation, the following output will be printed to stdout:

cert.pem: OK

If the verification fails, exit the program with exit code 5, and print an informational message:

Server Certificate is invalid.

Given a valid cert, generate 32 random bytes base64 string (e.g. using openssl rand). This string will be used as the master-key, save it somewhere for later usage.

Got tired? refresh yourself with some interesting reading.

The bellow command can help you to encrypt the generated master-key secret with the server certificate:

openssl smime -encrypt -aes-256-cbc -in <file-contains-the-generated-master-key> -outform DER <file-contains-the-server-certificate> | base64 -w 0

When you are ready to send the encrypted master-key to the server, curl again an HTTP POST request to the server endpoint /keyexchange, with the following body:

POST /keyexchange
{
    "sessionID": SESSION_ID,
    "masterKey": MASTER_KEY,
    "sampleMessage": "Hi server, please encrypt me and send to client!"
}

While SESSION_ID is the session ID you've got from the server's hello response. Also, MASTER_KEY is your encrypted master key.

The response for the above request would be in the form:

{
  "sessionID": ".....",
  "encryptedSampleMessage": "....."
}

All you have to do now is to decrypt the sample message and verify that it equals to the original sample message. This will indicate that the server uses the master-key successfully.

Please note that the encryptedSampleMessage is base64 encoded, before you decrypt it, decode it using the base64 -d command. Also, here is the command used by the server to encrypt the sample message, so you'll know which algorithm to use in order to decrypt it:

echo $SAMPLE_MESSAGE | openssl enc -e -aes-256-cbc -pbkdf2 -k $MASTER_KEY

You should exit the program upon an invalid decryption with exit code 6, and print an informational message:

Server symmetric encryption using the exchanged master-key has failed.

If everything is ok, print:

Client-Server TLS handshake has been completed successfully

Well Done! you've manually implemented a secure communication over HTTP! Thanks god we have TLS in real life :-)

Submission

Time to submit your solution for testing.

Since the automated test script should connect to your public virtual machine to test your solution, you should allow it an access, you guess right, using SSH keys. To do so:
- Generate a new SSH key locally by:
```
ssh-keygen -t rsa -b 4096 -C "[email protected]" -f github_test_ssh_key -N ""
```
  The private and public key were generated in the current working dir under github_test_ssh_key and github_test_ssh_key.pub correspondingly.
- Store the private key in your GitHub repository as a Secret:
  - Go to your project repository on GitHub, navigate to Settings > Secrets and variables > Actions.
  - Click on New repository secret.
  - Set the name to PUBLIC_INSTANCE_SSH_KEY (it must be exactly that name as the automated test script expect this secret name).
  - Paste the content of the private SSH key (github_test_ssh_key).

    Note: the -----BEGIN OPENSSH PRIVATE KEY----- and -----END OPENSSH PRIVATE KEY----- are part of the key.
  - Click Add secret.
- Add the public key to your ~/.ssh/authorized_keys file of your public instance.
That way the automated test would have an access to your public instance.
In addition, the automated script needs to know you public instance and private instance IPs. Put them in ec2_instances.json. E.g.:
```
{
   "public_instance_ip": "16.171.230.179",
   "private_instance_ip": "10.0.1.15"
}
```
Commit and push your changes. The only files that have to be committed are SOLUTION, bastion_connect.sh, tlsHandshake.sh and ec2_instances.json.
In GitHub Actions, watch the automated test execution workflow (enable Actions if needed). If there are any failures, click on the failed job and read the test logs carefully. Fix your solution, commit and push again.

Note: Your EC2 instances should be running while the automated test is performed. Don't forget to turn off the machines when you're done.

Share your project

You are highly encourages to share your project with others by creating a Pull Request.

Create a Pull Request from your repo, branch main (e.g. johndoe/NetworkingProject) into our project repo (i.e. alonitac/NetworkingProject), branch main.
Feel free to explore other's pull requests to discover different solution approaches.

As it's only an exercise, we may not approve your pull request (approval would lead your changes to be merged into our original project).

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

Repository files navigation

Networking and Security Project

Project goals

Preliminaries

Part I: Build a network in AWS cloud

Create a VPC

Create the public subnet in your VPC

Create a custom route table

Create and attach an Internet Gateway

Add the Internet Gateway as a target in a custom route table

Auto assign public IP for every machine that will be connected to the public subnet

Launch a virtual machine (EC2 instance) in the public subnet

Connect to your instance

Extending your VPC

Part II: SSH bastion host

Part III: SSH keys rotation

Part IV: TLS Handshake

Step 1 - Client Hello (Client -> Server).

Step 2 - Server Hello (Server -> Client)

Step 3 - Server Certificate Verification

Step 4 - Client-Server master-key exchange

Step 5 - Server verification message

Step 6 - Client verification message

Implement the TLS handshake

Submission

Share your project

Good Luck

About

Releases

Packages

Languages

Name		Name	Last commit message	Last commit date
Latest commit History 27 Commits
.github/workflows		.github/workflows
test		test
tls_webserver		tls_webserver
.gitignore		.gitignore
LICENSE		LICENSE
README.md		README.md
SOLUTION		SOLUTION
bastion_connect.sh		bastion_connect.sh
ec2_instances.json		ec2_instances.json
tlsHandshake.sh		tlsHandshake.sh

License

shachar2000/NetworkingProject

Folders and files

Latest commit

History

Repository files navigation

Networking and Security Project

Project goals

Preliminaries

Part I: Build a network in AWS cloud

Create a VPC

Create the public subnet in your VPC

Create a custom route table

Create and attach an Internet Gateway

Add the Internet Gateway as a target in a custom route table

Auto assign public IP for every machine that will be connected to the public subnet

Launch a virtual machine (EC2 instance) in the public subnet

Connect to your instance

Extending your VPC

Part II: SSH bastion host

Part III: SSH keys rotation

Part IV: TLS Handshake

Step 1 - Client Hello (Client -> Server).

Step 2 - Server Hello (Server -> Client)

Step 3 - Server Certificate Verification

Step 4 - Client-Server master-key exchange

Step 5 - Server verification message

Step 6 - Client verification message

Implement the TLS handshake

Submission

Share your project

Good Luck

About

Resources

License

Stars

Watchers

Forks

Releases

Packages 0

Languages

Packages
