+# Docker best practices: Choosing between RUN, CMD, and ENTRYPOINT
+
+Source: <https://www.docker.com/blog/docker-best-practices-choosing-between-run-cmd-and-entrypoint/>
+
+## RUN
+
+- The `RUN` instruction is used in Dockerfile to execute commands that build and configure the Docker image.
+- Each `RUN` instruction creates a new layer in the Docker image.
+
+## CMD
+
+- The `CMD` instruction specifies the default command to run when a container is started from the Docker image.
+- `CMD` is useful for setting default commands and easily overridden parameters.
+
+## ENTRYPOINT
+
+- The `ENTRYPOINT` instruction sets the default executable for the container. It is similar to CMD but is overridden by the command-line arguments passed to docker run. Instead, any command-line arguments are appended to the ENTRYPOINT command.
+- Note: Use `ENTRYPOINT` when you need your container to always run the same base command, and you want to allow users to append additional commands at the end.
+
+## Combining CMD and ENTRYPOINT
+
+The `CMD` instruction can be used to provide default arguments to an `ENTRYPOINT` if it is specified in the exec form. This setup allows the entry point to be the main executable and CMD to specify additional arguments that can be overridden by the user.
+
+```Dockerfile
+ENTRYPOINT ["python", "/app/my_script.py"]
+CMD ["--default-arg"]
+```
+
+```shell
+docker run myimage --user-arg -> python /app/my_script.py --user-arg
+```
+
+| Command    | Description                                                                                                                                                                                  | Use Case |
+| ---------- | -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | -------- |
+| CMD        | Defines the default executable of a Docker image. It can be overridden by docker run arguments. Utility images allow users to pass different executables and arguments on the command line.  |
+| ENTRYPOINT | Defines the default executable. It can be overridden by the “--entrypoint” docker run arguments. Images built for a specific purpose where overriding the default executable is not desired. |
+| RUN        | Executes commands to build layers. Building an image                                                                                                                                         |
+
+## What is PID 1 and why does it matter?
+
+In Docker containers, the process that runs as PID 1 is crucial, because it is responsible for managing all other processes inside the container. Additionally, PID 1 is the process that reviews and handles signals from the Docker host.
+
+When commands are executed in Docker using the **shell form**, a shell process (`/bin/sh -c`) typically becomes PID 1. Still, it does not properly handle these signals, potentially leading to unclean shutdowns of the container. In contrast, when using the **exec form**, the command runs directly as PID 1 without involving a shell, which allows it to receive and handle signals directly.
+
+## Shell and exec form
+
+In the previous examples, we used two ways to pass arguments to the RUN, CMD, and ENTRYPOINT instructions. These are referred to as shell form and exec form. **Note**: The key visual difference is that the exec form is passed as a comma-delimited array of commands and arguments with one argument/command per element. Conversely, shell form is expressed as a string combining commands and arguments.
+
+| Form       | Description                                                  | Example                                             |
+| ---------- | ------------------------------------------------------------ | --------------------------------------------------- |
+| Shell Form | Takes the form of <INSTRUCTION> <COMMAND>.                   | `CMD echo TESTorENTRYPOINT echo TEST`               |
+| Exec Form  | Takes the form of <INSTRUCTION> ["EXECUTABLE", "PARAMETER"]. | `CMD ["echo", "TEST"]orENTRYPOINT ["echo", "TEST"]` |
+
+```Dockerfile
+# Shell form, useful for complex scripting
+RUN apt-get update && apt-get install -y nginx
+
+# Exec form, for direct command execution
+RUN ["apt-get", "update"]
+RUN ["apt-get", "install", "-y", "nginx"]
+```
+
+```Dockerfile
+# ENTRYPOINT with exec form for direct process control
+ENTRYPOINT ["httpd"]
+
+# CMD provides default parameters, can be overridden at runtime
+CMD ["-D", "FOREGROUND"]
+```
+
+## Key differences between shell and exec
+
+<figure class="wp-block-table"><table><tbody><tr><td></td><td><strong>Shell Form</strong></td><td><strong>Exec Form</strong></td></tr><tr><td><strong>Form</strong></td><td>Commands without <code>[]</code> brackets. Run by the container’s shell, e.g., <code>/bin/sh -c</code>.</td><td>Commands with <code>[]</code> brackets. Run directly, not through a shell.</td></tr><tr><td><strong>Variable Substitution</strong></td><td>Inherits environment variables from the shell, such as <code>$HOME</code> and <code>$PATH</code>.</td><td>Does not inherit shell environment variables but behaves the same for <code>ENV</code> instruction variables.</td></tr><tr><td><strong>Shell Features</strong></td><td>Supports sub-commands, piping output, chaining commands, I/O redirection, etc.</td><td>Does not support shell features.</td></tr><tr><td><strong>Signal Trapping &amp; Forwarding</strong></td><td>Most shells do not forward process signals to child processes.</td><td>Directly traps and forwards signals like <code>SIGINT</code>.</td></tr><tr><td><strong>Usage with ENTRYPOINT</strong></td><td>Can cause issues with signal forwarding.</td><td>Recommended due to better signal handling.</td></tr><tr><td><strong>CMD as ENTRYPOINT Parameters</strong></td><td>Not possible with the shell form.</td><td>If the first item in the array is not a command, all items are used as parameters for the <code>ENTRYPOINT</code>.</td></tr></tbody></table></figure>
+
+## Decision Tree
+

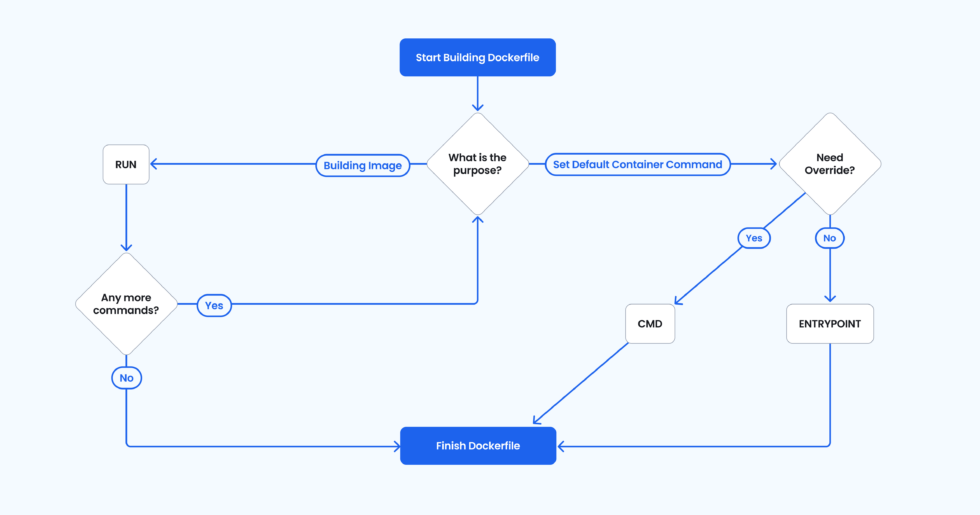

+- A decision tree for using RUN, CMD, and ENTRYPOINT in building a Dockerfile.
+
+![](https://www.docker.com/wp-content/uploads/2024/07/2400x1260_run-cmd-entrypoint-980x515.png)
+
+- A decision tree to help determine when to use exec form or shell form.
+
+![](https://www.docker.com/wp-content/uploads/2024/07/2400x1260_decision-tree-exec-vs-shell-980x515.png)
